| 원래 장소: | 치안스 |
|---|---|
| 브랜드 이름: | XINFUTIAN |
| 인증: | ISO,BV |
| 모델 번호: | 65#,70#,82b 고탄소 스프링 와이어 |
| 최소 주문 수량: | 5 톤 |
| 가격: | Negotiation |
| 포장 세부 사항: | 고객 요구로 표준 항해에 적당한 포장 또는 |
| 배달 시간: | 5-10 작업 일 |
| 공급 능력: | 달 당 1000 톤 |
| 상품 이름: | 탄소 스프링강선 | 허용한도: | ±1% |
|---|---|---|---|
| 색: | 검정색 | 등급: | 철 |
| 직경 (mm): | 1.0-5.0 | 특별한 사용: | 찬 표제 강철 |
| 하이 라이트: | 1.0MM 카본 스틸 와이어,72B 카본 스틸 와이어,1.0 밀리미터 냉 압연 강철 와이어 |
||

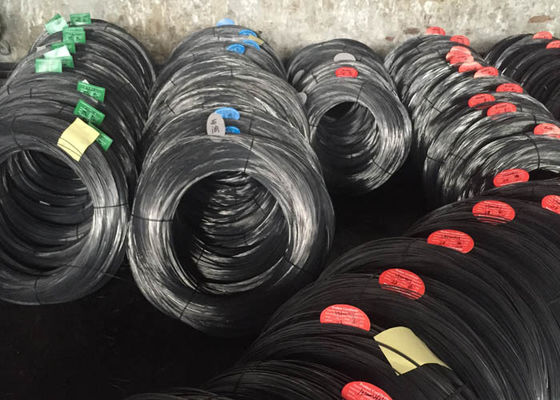

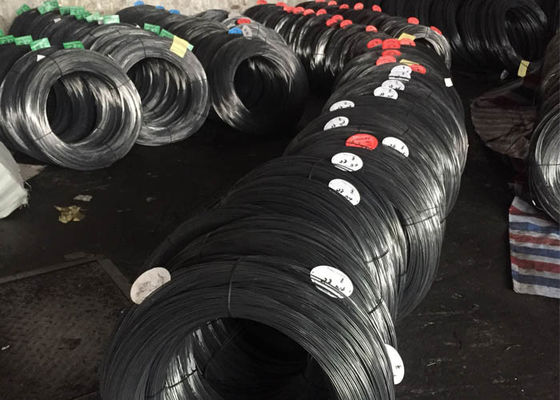

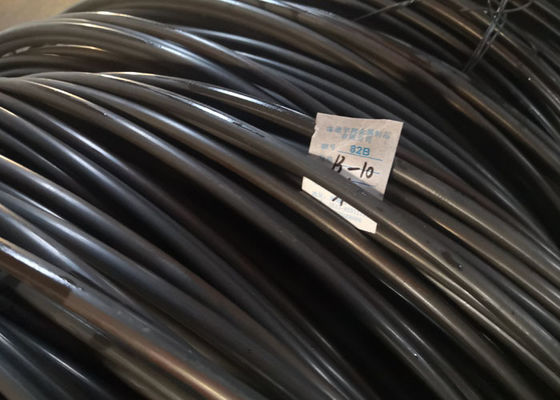

72B Cold Rolled Surface Carbon Spring steel wires galvanized steel cable wire
Because of high carbon content,the water quench prone to crack,when so many double liquid quenching(water quench+ oil cooling),small cross section parts with oil queching,this kind of steel in the medium temperature tempering after quenching and normalizing or used in the condition of the surface hardening,mainly used in the manufacture of springs and wear-resistant parts,carbon tool steel wire is basically not adding alloying element of high carbon steel wire,and tool steel wire in the low cost,good cold and hot workability and use a wide range of types of steel,spring steel including high carbon steel wire,high carbon steel wire is one of the types of spring steel wire,the steel wire can produce to spring that called spring steel wire,and high carbon content is called high carbon.
High carbon steel wire in after proper heat treatment or cold drawing hardening,high strength and hardness,high elastic limit and fatigue limit(especially the notch fatigue limit),cutting performance,but the weldability and cold plastic deformation ability is poor.
|
Steel Grade
|
SAE 1070, SWRH 82B, 65Mn
|
Wire Gauge
|
4.5 mm
|
|
Surface
|
Black, ungalvainized
|
Tensile Strength
|
1260~1830 Mpa
|
|
Package
|
Coil, Z2, wrapped by P.P.
|
Coil Weight
|
45 KGS or by options
|
|
MOQ
|
1 TON
|
Lead Time
|
no more than 7~10 days
|
|
Payment Terms
|
TT , LC
|
Loading Port
|
Any Port, China
|
|
Trade Terms
|
EXW, FOB, CIF
|
Certifications
|
CE, SGS
|
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cu
|
|
SAE 1040
|
0.42~0.50%
|
0.17~0.37%
|
0.50~0.80%
|
≤0.035%
|
≤0.035%
|
≤0.25%
|
|
SAE 1070
|
0.67~0.75%
|
0.17~0.37%
|
0.50~0.80%
|
≤0.035%
|
≤0.035%
|
≤0.25%
|
|
65Mn
|
0.62~0.70%
|
0.17~0.37%
|
0.90~1.20%
|
≤0.035%
|
≤0.035%
|
|
|
82B
|
0. 80%~ 0.85%
|
0. 12%~ 0. 32%
|
0. 60%~0. 90%
|
≤0. 025%
|
≤ 0. 025%
|
≤ 0. 20%
|
|
Diameter (mm)
|
Tensile Strength (n/mm2)
|
||
|
SW-A
|
SW-B
|
SW-C
|
|
|
1.0
|
1471~1716
|
1716~1961
|
1961~2206
|
|
1.2
|
1422~1667
|
1667~1912
|
1912~2158
|
|
1.4
|
1373~1618
|
1618~1863
|
1863~2108
|
|
1.6
|
1324~1569
|
1569~1814
|
1814~2059
|
|
1.8
|
1275~1520
|
1520~1765
|
1765~2010
|
|
2.0
|
1275~1471
|
1471~1716
|
1716~1961
|
|
2.3
|
1226~1422
|
1422~1667
|
1667~1912
|
|
3.0
|
1177~1373
|
1373~1618
|
1618~1863
|
|
3.5
|
1177~1373
|
1373~1618
|
1618~1863
|
|
4.5
|
1128~1324
|
1324~1520
|
1520~1716
|
|
5.0
|
1260~1450
|
1460~1650
|
1660~1830
|
Application:Widely used in construction, handicrafts, wire mesh, highway fences, product packaging and daily civil use.
Features:high strength and hardness,high elastic limit and fatigue limit(especially the notch fatigue limit),cutting performance,but the weldability and cold plastic deformation ability is poor.
